Fascia PowerShades
Fashionable robust aluminum fascia that conceals the fabric roll and provides a clean and contemporary aesthetic for spaces that require more of a modern finish.
Configurations
Power Options
Chain Pull
Spring Pull
AC
DC
Battery
True PoE

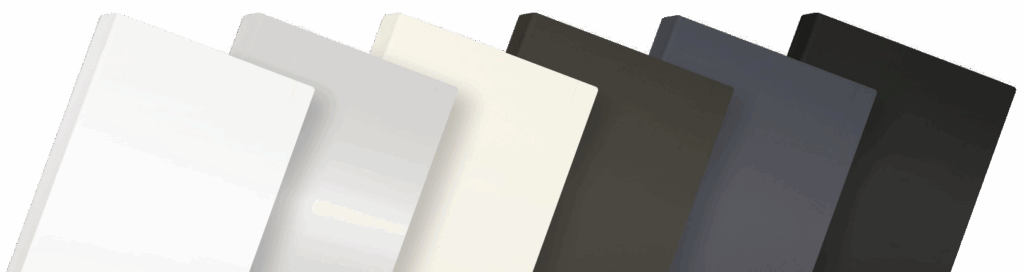

Color and Finish
Application Guidelines
| Size | Single | Single Max Dim. | Coupled | Band Count | Coupled Max Dim. | Dual | Dual Max Dim. | Dual Coupled | Band Count | Dual Coupled Max Dim. | Roll Direction |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 86" x 84" | 10 | 226" x 86" | N/A | N/A | N/A | N/A | N/A | STANDARD ONLY | ||
| 4" | 130" x 130" | 10 | 240" x 90" | N/A | N/A | N/A | N/A | N/A | STANDARD / REVERSE | ||
| 5" | 132" x 120" | 10 | 240" x 120" | 72" x 72" | 10 | 240" x 72" | STANDARD / REVERSE | ||||
| 7" | N/A | N/A | N/A | N/A | N/A | 100" x 96" | 10 | 240" x 96" | STANDARD / REVERSE |
(W" × H") The maximum dimensions presented in the chart are based on our heaviest fabric. Larger sizes may be achievable with lighter fabrics.
These maximums may have a “slight V shape” warning in the Portal. 7" Fascia configuration is only applicable if the shade is built with both a High-Voltage power option and a dual configuration.
5" Fascia over 226" and 7" Fascia over 188" on coupled systems may require multiple cuts of Fascia for the application due to width restrictions of the material.
